1550nm High Power Optical Circulator 10W
Product Details
The 3 port 1550nm High Power Polarization Insensitive Optical Circulator is a fiber optic componet built with SM fiber. It allows light to be transmitted in only one direction while blocking the opposite transmttion, it's light path is port 1 to port 2, and port 2 to port 3.
Features
Low Insertion Loss
High Isolation
Optical Path Epoxy-free
High Power Handling
Applications
EDFA & Raman Amplifier
Fiber Sensor
Dispersion Compensation
Test & Meaturement
WDM Systems
Performance Specification
|
Parameter |
Value |
Unit |
|
Center Wavelength |
1550 or customized |
nm |
|
Bandwidth |
±10 |
nm |
|
Configuration |
1X2, (port 1→2, 2→3) |
|
|
Typ. Insertion Loss (port 1→2, 2→3) |
0.9 |
dB |
|
Max. Insertion Loss (port 1→2, 2→3) |
1.2 |
dB |
|
Typ. Isolation (port 2→1, 3→2) |
26 |
dB |
|
Min. Isolation (port 2→1, 3→2) |
20 |
dB |
|
Max. PDL (port 1→2, 2→3) |
0.15 |
dB |
|
Min.Cross Talk (port 1→3) |
50 |
dB |
|
Min. Return Loss |
50 |
dB |
|
Max. Optical Power (Continuous Wave) |
1, 3, 5, 10 |
W |
|
Max. Tensile Load |
5 |
N |
|
Fiber Type |
Corning SMF-28e Fiber |
|
|
Operating Temperature |
-5 to +50 |
℃ |
|
Storage Temperature |
-40 to +85 |
℃ |
|

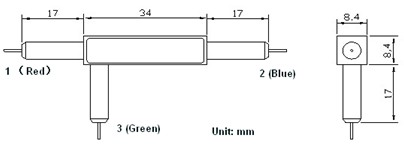

Package Dimension |
L34×W8.4×H8.4 |
mm |
Note
* For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower.
* Connectors only CW 1W handling power guarantee.
* Package may change according to different handling power.
Ordering Information
HPCIR-AAAA-BB-C-DD-EE-FF
|
AAAA |
BB |
C |
DD |
EE |
FF |
|
Wavelength |
Port |
Fiber Jacket |
Fiber Length |
Connector |
Power |
|
1310 - 1310nm 1480 - 1480nm 1550 - 1550nm SSSS - Specify |
12 - 1 X 2 |
B - 250um Bare Fiber L - 900um Loose Tube |
05 - 0.5m 08 - 0.8m 10 - 1.0m 15 - 1.5m SS- Specify |
NE - None
|
01 - 1W 02 - 2W 03 - 3W 05 - 5W 10 - 10W SS- Specify |
