1550nm High Power PM Optical Circulator 10W
Product Details
The 3 port 1550nm High Power Polarization Maintaining (PM) Optical Circulator is a fiber optic componet built with PM fiber. It allows light to be transmitted in only one direction while blocking the opposite transmttion, it's light path is port 1 to port 2, and port 2 to port 3. The PM fiber circulator is widely used in optical fiber networks and amplifiers where polarization maintaining characteristics are needed. High Power handling up to 10W available upon request.
Features
Low Insertion Loss
High Isolation
High Extinction Ratio
High Power Handling
Applications
EDFA & Raman Amplifier
Fiber Sensor
Dispersion Compensation
Test & Meaturement
WDM Systems
Performance Specification
|
Parameter |
Value |
Unit |
|
Center Wavelength |
1550 or customized |
nm |
|
Bandwidth |
±20 |
nm |
|
Configuration |
1X2, (port 1→2, 2→3) |
|
|
Typ. Insertion Loss (port 1→2, 2→3) |
0.6 |
dB |
|
Max. Insertion Loss (port 1→2, 2→3) |
0.8 |
dB |
|
Typ. Isolation (port 2→1, 3→2) |
30 |
dB |
|
Min. Isolation (port 2→1, 3→2) |
25 |
dB |
|
Min. Extinction Ratio |
20 |
dB |
|
Min.Cross Talk (port 1→3) |
50 |
dB |
|
Min. Return Loss |
50 |
dB |
|
Max. Optical Power (Continuous Wave) |
1, 3, 5, 10 |
W |
|
Max. Tensile Load |
5 |
N |
|
Fiber Type |
PM Panda Fiber |
|
|
Operating Temperature |
-5 to +50 |
℃ |
|
Storage Temperature |
-40 to +85 |
℃ |
|

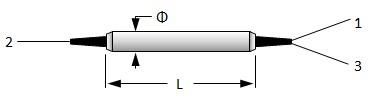

Package Dimension |
Φ5.5×L35 |
mm |
Note
* For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower.
* Connectors only CW 1W handling power guarantee.
* Package may change according to different handling power.
Ordering Information
HPMCIR-AAAA-BB-C-DD-EE-FF
|
AAAA |
BB |
C |
DD |
EE |
FF |
|
Wavelength |
Port |
Fiber Jacket |
Fiber Length |
Connector |
Power |
|
1310 - 1310nm 1480 - 1480nm 1550 - 1550nm SSSS - Specify |
12 - 1 X 2 |
B - 250um Bare Fiber L - 900um Loose Tube |
05 - 0.5m 08 - 0.8m 10 - 1.0m 15 - 1.5m SS- Specify |
NE - None
|
01 - 1W 02 - 2W 03 - 3W 05 - 5W 10 - 10W SS- Specify |
