S+C+L Band High Power Optical Circulator 10W
Product Details
The High power 3 port S+C+L Band Polarization Insensitive Optical Fiber Circulator is a fiber optic componet built with single mode fiber. It allows light to be transmitted in only one direction while blocking the opposite transmttion, it's light path is port 1 to port 2, and port 2 to port 3. The fiber circulator is widely used in optical fiber networks and fiber instruments. High Power handling up to 10W is available upon request.
Features
Low IL & High Isolation
High Reliability and Stability
Optical Path Epoxy-free
High Power Handling
Applications
EDFA
Fiber Instrument
DWDM OADM System
Test & Meaturement
Performance Specification
|
Parameter |
Value |
Unit |
|
Center Wavelength (λc) |
S+C+L Band: 1460 to 1620 |
nm |
|
Configuration |
1X2, (port 1→2, 2→3) |
|
|
Typ. Insertion Loss (λc, port 1→2, 2→3) |
0.9 |
dB |
|
Max. Insertion Loss (λc, port 1→2, 2→3) |
1.1 |
dB |
|
Typ. Isolation (λc, port 2→1, 3→2) |
50 |
dB |
|
MMin. Isolation (λc, port 2→1, 3→2) |
40 |
dB |
|
Max. PDL |
0.15 |
dB |
|
Max. PMD |
0.2 |
ps |
|
Min.Cross Talk (port 1→3) |
50 |
dB |
|
Min. Directivity |
50 |
dB |
|
Min. Return Loss |
50 |
dB |
|
Max. Optical Power (Continuous Wave) |
1,2, 3, 5, 10 |
W |
|
Max. Tensile Load |
5 |
N |
|
Fiber Type |
SMF-28e Fiber |
|
|
Operating Temperature |
-5 to +70 |
℃ |
|
Storage Temperature |
-40 to +85 |
℃ |
|

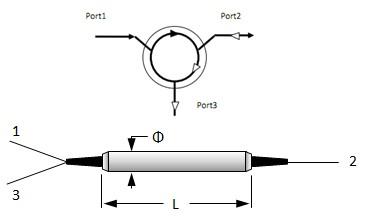

Package Dimension |
Φ5.5×L50 |
mm |
Note
* Above specifications are for device without connector. Connectors only CW 1W handling power guarantee.
Ordering Information
HPCIR-AAA-BB-C-DD-EE-FF
