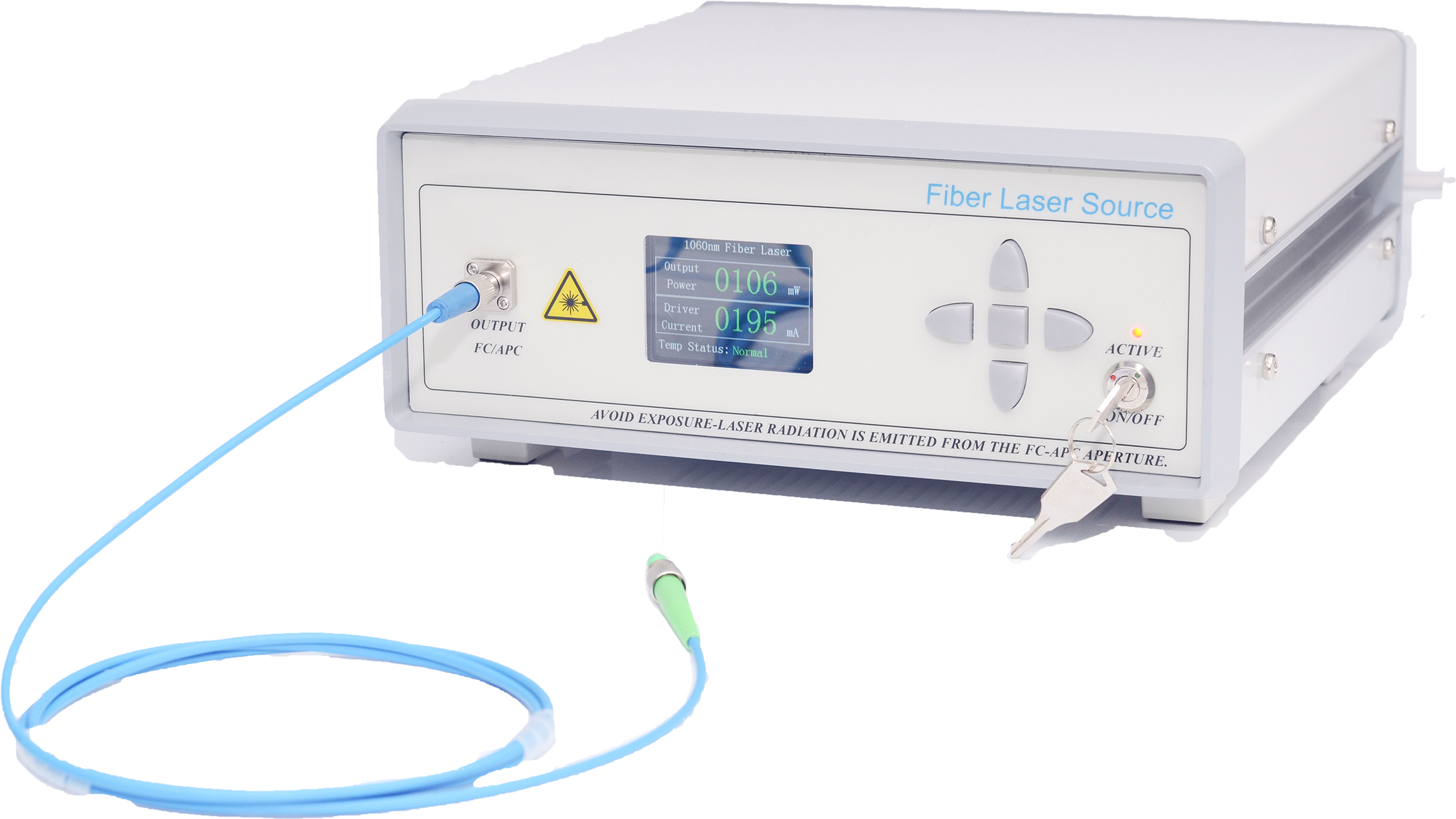

C++ band ASE Broadband Light Source
C++ band ASE broadband light source extends the wavelength range on the basis of C-band ASE broadband light source, covering the wavelength range of 1524-1572nm (frequency 190.65~196.675THz), and its spectral flatness is better than 2.5dB. It is output through single-mode fiber or polarization maintaining fiber, which is suitable for fiber sensing and other applications.
|
Features |
Applications |
|
n Spectral flatness |
n Fiber sensing |
|
n Power adjustable |
n Medical imaging |
|
n Wider spectral range |
n Production test |
|
Optical index |
Unit |
Typical value |
Notes |
|
|

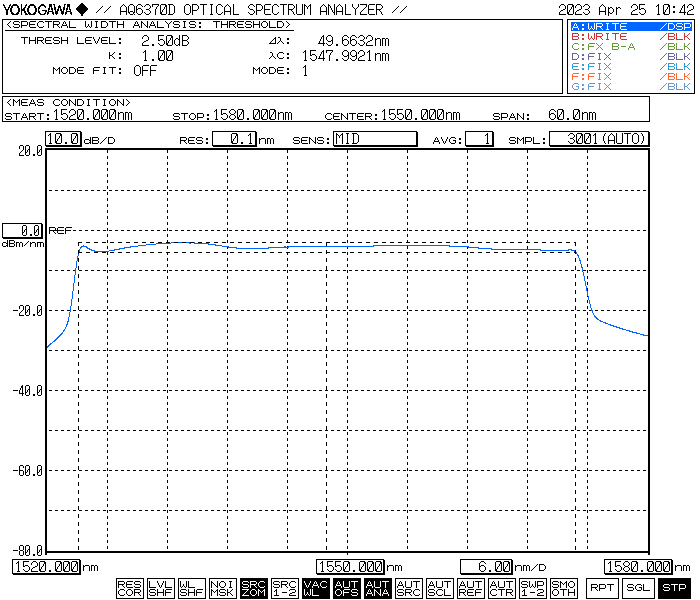

spectrum range |
nm |
1524~1572 |
2.5dB spectral range |
|
|
Output optical power |
mW |
10/20/50/100/200 |
|
|
|
Power adjustment range (optional function) |
- |
10%~100% |
Power is adjustable and spectral flatness is maintained |
|
|
Spectral flatness |
dB |
2.5(Typical) |
* |
|
|
Output isolation |
dB |
>35 |
|
|
|
Short-term stability (15 minutes) |
dB |
≤ ±0.02 |
Equivalent≤±0.5% |
|
|
Long-term stability (8 hours) |
dB |
≤ ±0.05 |
Equivalent≤±1.2% |
|
|
Polarization extinction ratio PER |
dB |
≤ 0.2 |
≥23 |
|
|
fiber and connector |
- |
SMF-28 |
PM1550 |
FC/APC |
|
Electrical and environmental parameters |
table model |
module |
|
Control mode |
Button/RS232 serial communication |
RS232 serial communication |
|
Communications interface |
DB9 Female |
DB9 Female |
|
Power |
100~240V AC, <30W |
5V DC, <15W |
|
Size |
260(W)×280(D)×120(H)mm |
125(W)×150(D)×20(H)mm |
|
Operating temperature and humidity range |
-5~+35°C |
|
|
Operating humidity range |
0~70% |
|
