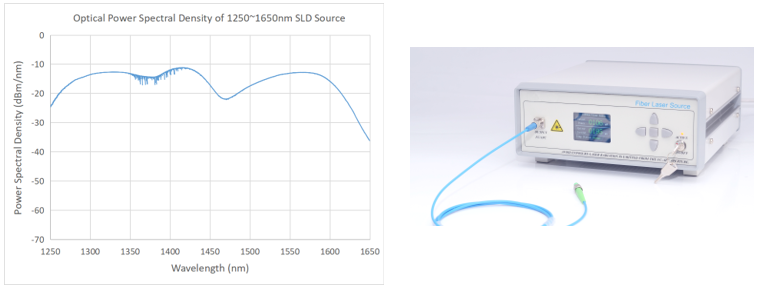

The ultra wideband SLD light source adopts the spectrum splicing technology of multiple semiconductor superluminescent diodes to output a broadband spectrum covering the 1250-1650nm band, and has a high optical power density. It is suitable for passive component testing, optical fiber sensing and other applications.
Features:
Application：
² Ultra wide spectrum
² Optical fiber sensing
² Low spectral ripple
² Medical imaging
² Power stability
² Optical fiber device test
Optical index
Unit
Typical value
Notes
Spectral range
nm
1250~1650
Total output optical power
mW
>10
Non adjustable
Spectral power density
dBm/
≥-25
Spectral ripple
dB
<0.2
Short term stability
(15 minutes)
≤±0.02
Long term stability
(8 hours)
≤±0.05
Degree of polarization DOP
≤0.2
Pigtail type
-
SMF-28e Single mode fiber
Pigtail joint type
FC/APC
Electrical and environmental parameters
table model
module
control mode
Button
RS232 Serial communication
communication interface
* Optional
DB9 Female
Power supply
100~240V AC, <30W
5V DC, <15W
Dimensions
260(W)×280(D)×120(H)mm
125(W)×150(D)×20(H)mm
Operating temperature range
-5~+55°C
Operating humidity range
0~70%
Order information/Model
SLD
power spectral density (dBm/nm)
Package Type
2565=1250~1650nm
25=-25dBm/nm
B=table model
M=module
