1550 980nm High Power SM Tap Coupler Isolator WDM Hybrid
Product Details

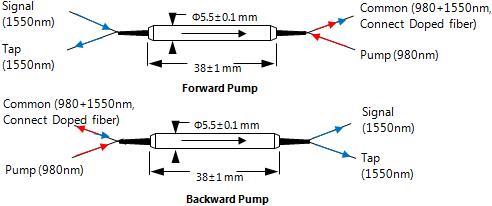

The 1550/980 nm High Power SM Tap Coupler+Isolator+WDM Hybrid is a compact-sized hybrid component which provides function as a WDM with a optical isolator and a tap coupler integrated. Forward pump type and backward pump type are both available. It's widely used in EDFA systems. High Power handling is available upon request.
Features
Low Insertion Loss
Compact Package
High Isolation
High Power Available
Applications
EDFA
Fiber Amplifier
Lab & Research
Performance Specification
|
Parameter |
Value |
Unit |
||||
|
Signal Wavelength |
1550 (1528-1564), or 1590 (1570-1605) |
nm |
||||
|
Pump Wavelength |
980 (965-1000) |
nm |
||||
|
Stage |
Single Stage |
Dual Stage |
|
|||
|
Isolation @ 23℃, Signal Wavelength, all SOP for Com to Signal Port |
≥30 |
≥45 |
dB |
|||
|
dB |
||||||
|
Wavelength Isolation |
Signal Channel@Pump Wavelength for Signal to Com |
≥30 |
dB dB |
|||
|
Pump Channel@Signal Wavelength for Pump to Com |
≥12 |
dB dB |
||||
|
Insertion Loss (0-70℃, all Sop) |
Pump Channel@Pump Wavelength for Pump to Com |
≤0.6 |
dB dB |
|||
|
Signal Channel (EL*)@Signal Wavelength for Signal to Com |
≤1.4 |
dB dB |
||||
|
Tap Channel@ Signal Wavelength for Signal to Tap |
Tap 1% Tap 2% Tap 5% |
19.2-22.0 16.2-18.0 12.2-14.0 |
dB dB dB |
|||
|
Max. PMD |
0.25 |
0.1 |
ps |
|||
|
Max.PDL |
0.1 |
0.2 |
dB |
|||
|
Min. Return Loss |
50 |
dB |
||||
|
Max. Optical Power (Continuous Wave) |
0.3, 1, 3, 5 or customized |
W |
||||
|
Max. Tensile Load |
5 |
N |
||||
|
Fiber Type |
HI 1060 for Comm/Pump Port, or customized SMF-28e for Signal/Tap Port, or customized |
|
||||
|
Operating Temperature |
0 to +70 |
℃ |
||||
|
Storage Temperature |
-40 to +85 |
℃ |
||||
|
Package Dimension |
Φ5.5×L38 |
mm |
||||
Note
* Connectors only CW 1W handling power guarantee.
* For devices with connectors, IL will be 0.3dB higher, and RL will be 5dB lower.
* For high power aplications, IL will be 0.2dB higher, and for pulse applications please contact us to confirm details.
* Specs subject to change without notice.
Ordering Information
HPTIWDM-AAAA/AAA-B-CC-D-EE-FF-GG
