1310nm High Power Optical Isolator 1-20W
Product Details
The 1310nm High Power Polarization Independent (Polarization Insensitive) Optical Fiber Isolator is an in-line pigtailed miro-optic component allows light to be transmitted only in the forward direction while blocking the backward transmittion. It features high isolation, low insertion loss and high power handling. The optical isolators are commonly used to protect lasers or amplifiers against back-reflected light.
Features
High Isolation
Low Insertion Loss
High Power Handling
High Reliability & Stability
Applications
Fiber Amplifier
Fiber Laser & Sensor
Lab & Research
Performance Specification
|
Parameter |
Value |
Unit |
|
|
Stage |
Single Stage |
Dual Stage |
nm |
|
Center Wavelength |
1310, 1480, 1550 or customized |
nm |
|
|
Bandwidth |
±20 |
nm |
|
|
Typ. Isolation at 23℃ |
0.35 |
0.4 |
dB |
|
Max. Insertion Loss at 23℃ |
0.5 |
0.6 |
dB |
|
Typ. Peak Isolation |
42 |
58 |
dB |
|
Min. Isolation at 23℃ |
28 |
48 |
dB |
|
Max. PMD |
0.2 (0.05 is available on request) |
0.05 |
ps |
|
Max. PDL at 23℃ |
0.05 |
dB |
|
|
Min. Return Loss |
55 |
dB |
|
|
Max. Optical Power (CW) |
1, 3, 5, 6, 10，15，20 |
W |
|
|
Max.Tensile Load |
5 |
N |
|
|
Fiber Type |
Corning SMF-28e or customized |
|
|
|
Operating Temperature |
-5 to +50 |
℃ |
|
|
Storage Temperature |
-20 to +75 |
℃ |
|
|

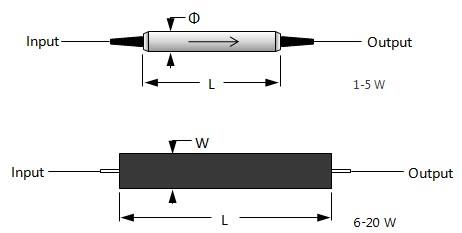

Package Dimension |
Φ5.5×L35 for 1-5W, L70×W12×H9 for 6-20W |
mm |
|
Note
* For pulse applications, pls discuss with us.
* Connectors only CW 1W handling power guarantee.
Ordering Information
HPII-AAAA-B-C-DD-EE-FF
|
AAAA |
B |
C |
DD |
EE |
FF |
|
Wavelength |
Stage |
Fiber Jacket |
Fiber Length |
Connector |
Power |
|
1310 - 1310nm 1480 - 1480nm 1550 - 1550nm SSSS- Specify |
S - Single Stage D - Dual Stage |
B - 250um Bare Fiber L - 900um Loose Tube |
05- 0.5m 08- 0.8m 10- 1.0m 15- 1.5m SS- Specify |
NE - None FA - FC/APC FP - FC/PC SA - SC/APC SP - SC/PC LA- LC/APC LP - LC/PC SS- Specify |
01 - 1W 03 - 3W 05 - 5W 10 - 10W 15 - 15W 20 - 20W |
