1550nm High Power PM Optical Isolator 1-10W
Product Details
The 1550nm High Power Polarization Maintaining (PM) Optical Fiber Isolator is an in-line miro-optic component allows light to be transmitted only in the forward direction while blocking the backward transmittion. It's built with PM Panda fiber and designed to maintain the polarization of the input light with high extinction ratio. The PM isolators are commonly used to protect lasers or amplifiers against back-reflected light. Dual stage isolator means two singe stage isolators are packaged into one compact housing. High power up to 10W availible upon request.
Features
High Isolation & ER
Low Insertion Loss
High Power Handling
High Reliability & Stability
Applications
Fiber Amplifier
Fiber Laser & Sensor
Lab & Research
Performance Specification
|
Parameter |
Value |
Unit |
|
|
Stage |
Single Stage |
Dual Stage |
nm |
|
Center Wavelength |
1310, 1480, 1550 or customized |
nm |
|
|
Bandwidth |
±20 |
nm |
|
|
Typ. Isolation at 23℃ |
0.35 |
0.4 |
dB |
|
Max. Insertion Loss at 23℃ |
0.5 |
0.6 |
dB |
|
Typ. Peak Isolation |
42 |
58 |
dB |
|
Min. Isolation at 23℃ |
28 |
48 |
dB |
|
Min. Extinction Ratio for slow axis working type |
25 |
dB |
|
|
Min. Extinction Ratio for both axis working type |
22 |
dB |
|
|
Min. Return Loss |
55 |
dB |
|
|
Max. Optical Power (CW) |
1, 3, 5, 6, 10 |
W |
|
|
Max.Tensile Load |
5 |
N |
|
|
Fiber Type |
PM Panda Fiber |
|
|
|
Operating Temperature |
-5 to +50 |
℃ |
|
|
Storage Temperature |
-20 to +75 |
℃ |
|
|

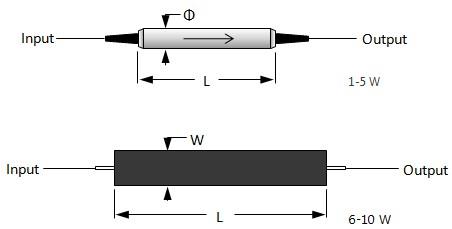

Package Dimension |
Φ5.5×L35 for 1-5W, L80×W12×H10 for 6-20W |
mm |
|
Note
* For pulse applications, pls discuss with us.
* Connectors only CW 1W handling power guarantee if added.
* PM fiber and connector key are aligned to slow axis.
Ordering Information
HPMI-AAAA-B-C-DD-EE-F-GG
