Multimode Optical Isolator 790 793 808 810 nm
Product Details
The 790 793 808 810nm Multimode Optical Fiber Isolator is an in-line pigtailed miro-optic component allows light to be transmitted only in the forward direction while blocking the backward transmittion. It was built by 50/125, 62.5/125, or 105/125um multimode fiber. It features high isolation, low insertion loss and high power handling . The optical isolators are commonly used to protect lasers or amplifiers against back-reflected light.
Features
High Isolation
Low Insertion Loss
Broadband
Applications
Fiber Amplifier
Fiber Laser & Sensor
Lab & Research
Performance Specification
|
Parameter |
Value |
Unit |
|
Center Wavelength (λc) |
790, 793, 808, 810 or customized |
nm |
|
Bandwidth |
±10 |
nm |
|
Typ. Insertion Loss at 23℃ |
0.9 |
dB |
|
Max. Insertion Loss at 23℃ |
1.5 |
dB |
|
Typ. Peak Isolation |
25 |
dB |
|
Min. Isolation at 23℃ |
20 |
dB |
|
Min. Return Loss |
30 |
dB |
|
Max. Optical Power (CW) |
1 |
W |
|
Max. Tensile Load |
5 |
N |
|
Fiber Type |
50/125, 62.5/125, or 105/125um Multimode Fiber |
|
|
Operating Temperature |
5 to +60 |
℃ |
|
Storage Temperature |
-20 to +75 |
℃ |
|

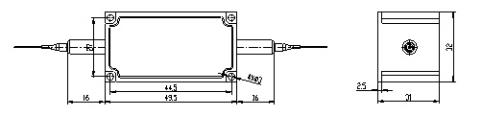

Package Dimension |
|
mm |
Note
* For pulse applications, pls discuss with us.
* Package size subject to change without notice.
Ordering Information
MMHPI-AAA-BBB-C-DD-EE
|
AAAA |
BB |
C |
DD |
EE |
|
Wavelength |
Fiber Type |
FiberJacket |
FiberLength |
Connector |
|
790 - 790nm 793 - 793nm 808 - 808nm 810 - 810nm SSS- Specify |
050 - 50/125um MM Fiber 625 - 62.5/125um MM Fiber 105 - 105/125um MM Fiber SSS- Specify |
B-250um Bare Fiber L-900um Loose Tube |
05 - 0.5m 08 - 0.8m 10 - 1.0m 15 - 1.5m SS - Specify |
NE-None FA-FC/APC FP-FC/PC SA-SC/APC SP-SC/PC LA-LC/APC LP-LC/PC SS-Specify |
