Erbium-doped Fiber Booster Amplifier for L-band
Erbium-doped Fiber Booster Amplifier for L-band is a series of optical power amplifiers specially used in fiber laser or fiber communication system. Its working wavelength covers 1570~1603 nm, and it has the advantages of high gain and low noise.

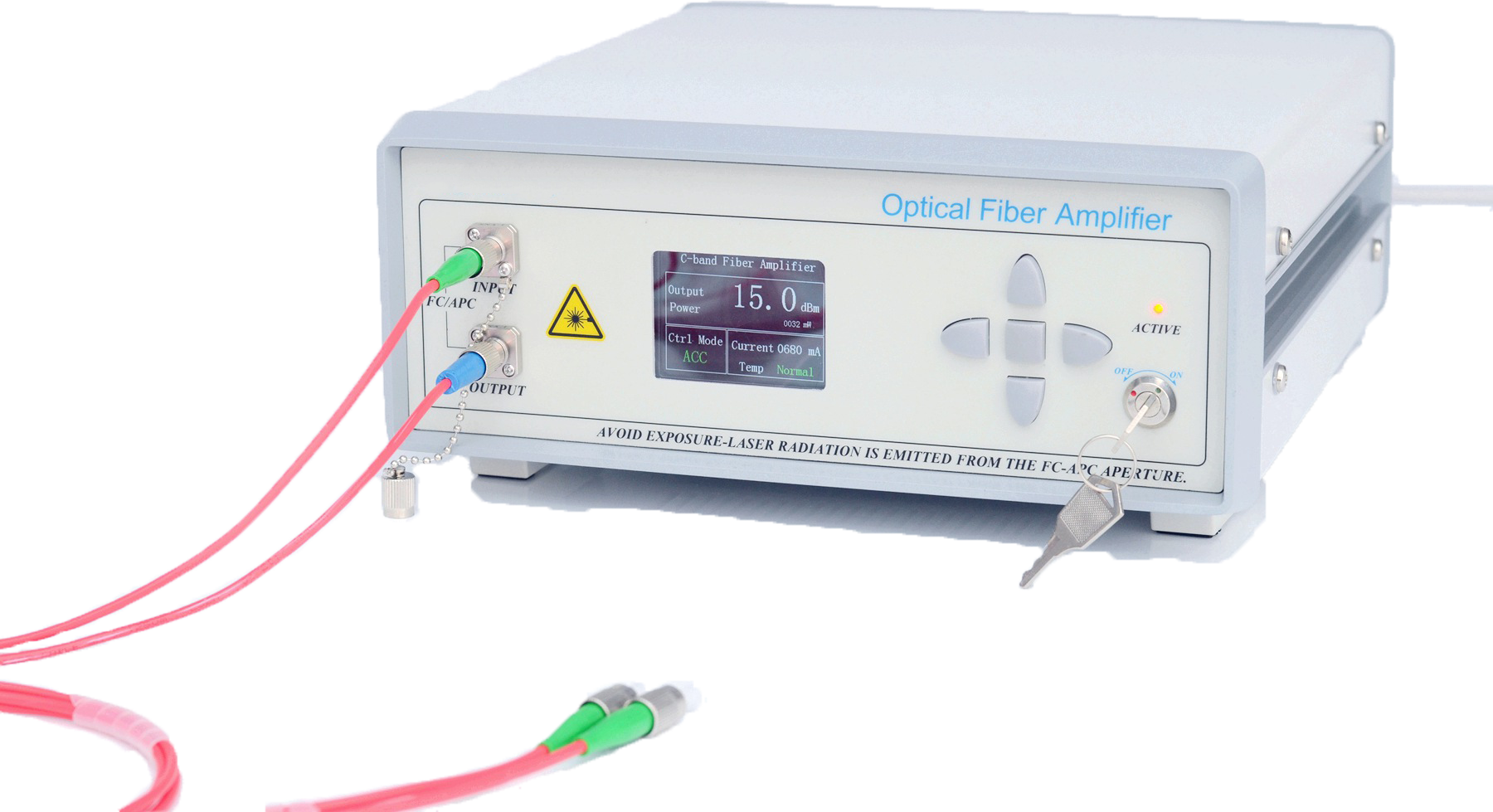

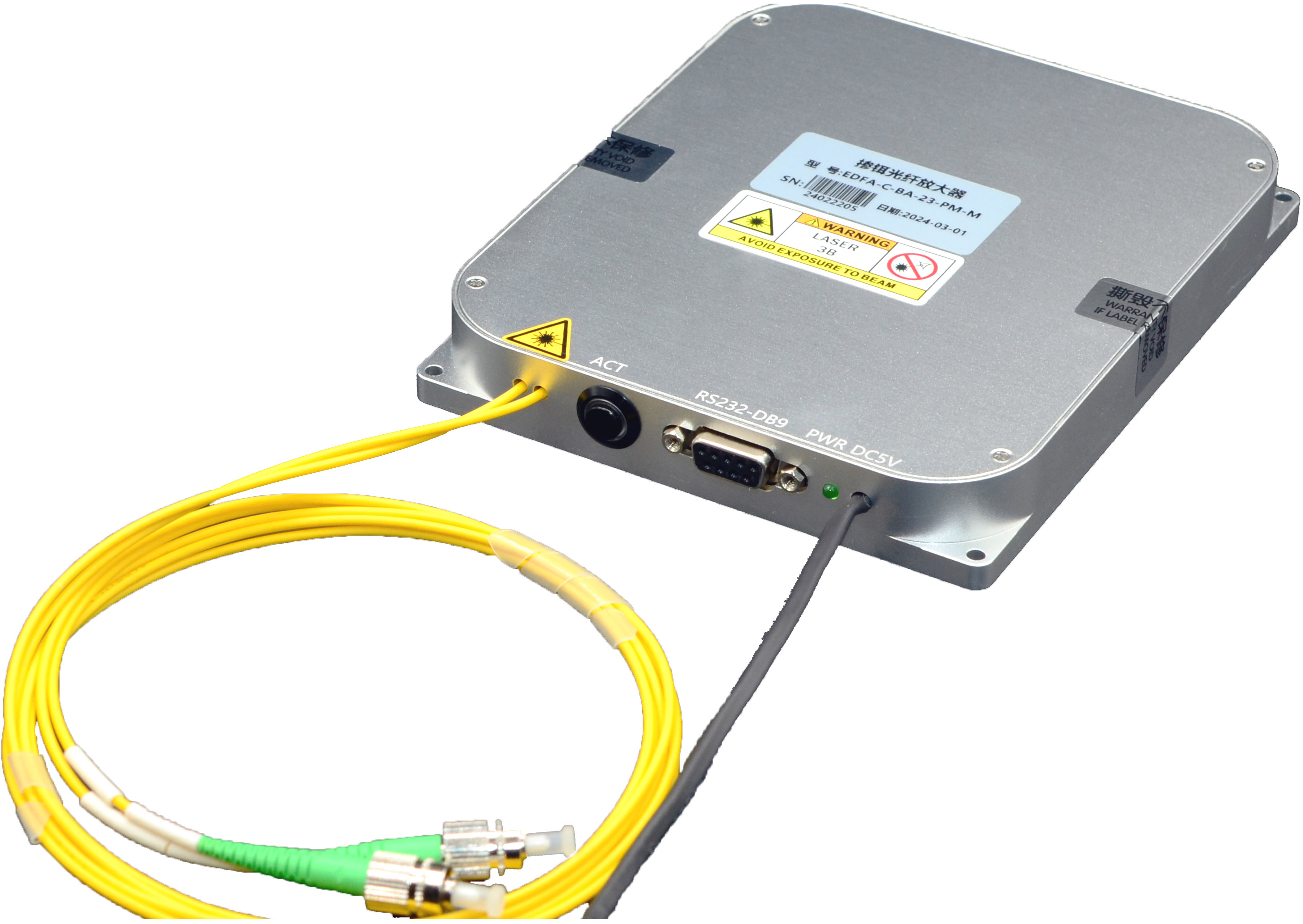

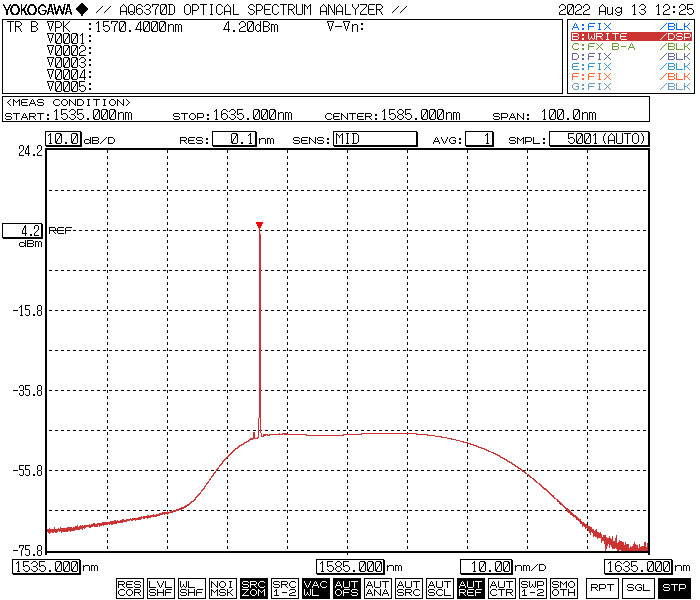

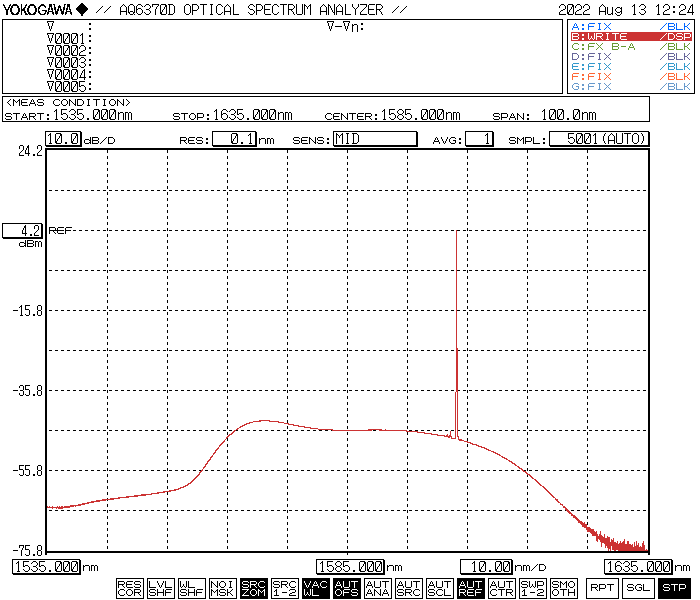

L-band amplified output spectrum (1590nm and 1603nm, 23dBm）power)
|
Features |
Applications |
|
n Covering l-band |
n Fiber communication |
|
n High gain coefficient |
n Fiber sensing |
|
n High output power |
n Fiber laser |
|
Optical index |
Unit |
Typical value |
Notes |
|
|
wavelength range |
1570~1605 |
L-band |
||
|
Input power |
dBm |
-6~+3 |
|
|
|
Saturated output power |
dBm |
15/17/20/23/25/26 |
@-3dBm input |
|
|
Noise figure |
dB |
5.0 |
@-3dBm input |
|
|
Polarization extinction ratio |
dB |
- |
≥23 |
|
|
Polarization dependent gain |
dB |
≤0.3 |
|
|
|
Polarization mode dispersion |
ps |
0.5 |
|
|
|
Input/output isolation |
dB |
>35 |
|
|
|
Optical power monitoring |
- |
Output power monitoring |
|
|
|
Tail fiber type |
- |
SMF-28 |
PM1550 |
|
|
Tail joint type |
- |
FC/APC |
|
|
|
working model |
|
Automatic current control (ACC)/ automatic power control (APC) |
|
|
|
Electrical and environmental parameters |
Table type |
module |
|
Control mode |
Button /RS232 serial communication |
RS232 serial communication |
|
communications interface |
DB9 Female |
DB9 Female |
|
Power |
100~240V AC, <30W |
5V DC, <15W |
|
Size |
260(W)×280(D)×120(H)mm |
125(W)×150(D)×20(H)mm |
|
operating temperature range |
-5~+35°C |
|
|
Operating humidity range |
0~70% |
|
|
Ordering information/model |
|||||
|
EDFA |
operating wavelength |
Amplifier type |
Saturated output power(dBm) |
Fiber type |
package |
|
|
L=L band |
BA=Power amplifier |
15/17/20/23/25/26 |
SM=SMF-28 PM=PM1550 |
M=module B=Table type |
