Erbium-doped Fiber Pre-Amplifier for L-band
Erbium-doped Fiber Pre-Amplifier for L-band (PA Amplifier for short) is an amplifier dedicated to L-band weak optical signals in the range of-45 DBM to-25 DBM. The typical gain of small signals is as high as 45 dB, and it has a low noise figure. It is usually used before photodetectors to improve its detection ability for weak optical signals.
|
Features |
Applications |
|
n Wide wavelength range |
n Fiber communication |
|
n High gain coefficient |
n Fiber sensing |
|
n low noise |
n Fiber laser |
|
Optical index |
Unit |
Typical value |
Notes |
|
|
Wavelength range |
nm |
1570~1603nm |
L-band |
|
|
Input power |
dBm |
-45~-25 |
|
|
|

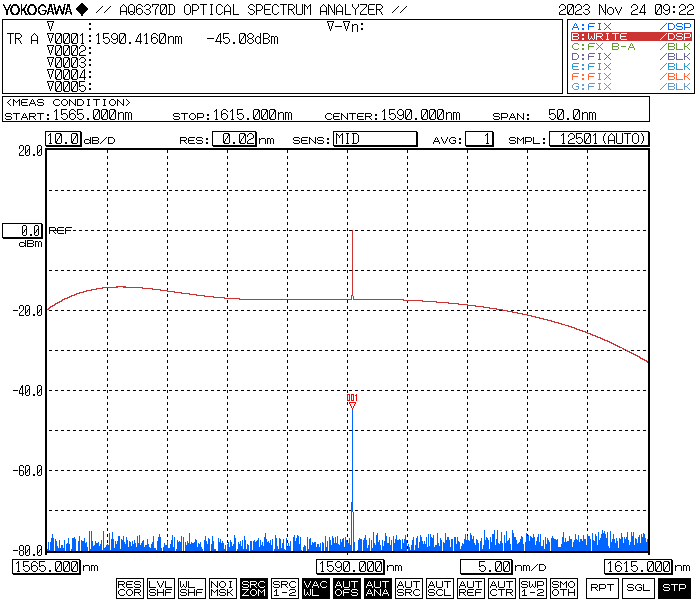

Gain coefficient |
dB |
45@-45dBm Input |
|
|
|
Noise index |
dB |
≤4.5 |
|
|
|
Polarization extinction ratio |
dB |
- |
≥23 |
|
|
Polarization dependent gain |
dB |
≤0.3 |
|
|
|
Polarization mode dispersion |
ps |
≤0.5 |
|
|
|
Input/output isolation |
dB |
>35 |
|
|
|
Optical power monitoring |
- |
Output optical power monitoring |
|
|
|
Tail fiber type and connector |
- |
SMF-28 |
PM1550 |
FC/APC |
|
working model |
- |
Automatic current control(ACC) |
Note 2 |
|
|
Electrical and environmental parameters |
Table type |
module |
|
Control mode |
Button /RS232 serial communication |
RS232 serial communication |
|
Communications interface |
DB9 Female |
DB9 Female |
|
Power |
100~240V AC, <30W |
5V DC, <15W |
|
Size |
260(W)×280(D)×120(H)mm |
125(W)×150(D)×20(H)mm |
|
operating temperature range |
-5~+35°C |
|
|
Operating humidity range |
0~70% |
|
