1010~1080nm ASE Broadband Light Source

ꄲNext： 1064nm ASE Broadband Light Source

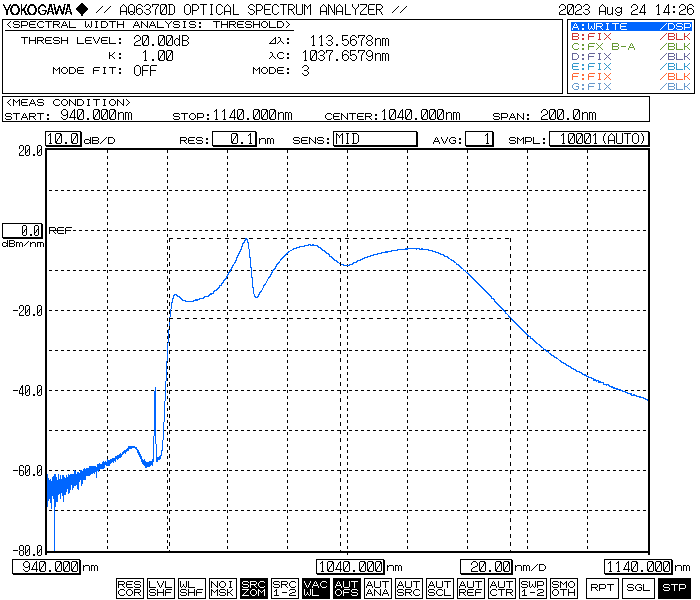

1010~1080nm ASE Broadband Light Source is based on Yb-doped fiber and semiconductor pump laser, with complete spectrum covering 1010~1080nm(20dB range covering 980~1090nm), high output power and good flatness. It can be used in optical fiber device testing and FBG grating production.

Features	Applications
n Wide spectral range	n Fiber sensing
n High stability output power	n Medical imaging
n Spectral flatness	n Fiber device testing

Optical index	Unit	Typical value	Notes
Central wavelength	nm	1040±2
wavelength range	nm	1010~1090	@10dB
Output power	mW	20	Power is not adjustable
Output isolation	dB	>35
Short-term stability (15 minutes)	dB	≤ ±0.02	Equivalent≤±0.5%
Long-term stability (8 hours)	dB	≤ ±0.05	Equivalent≤±1.2%
Polarization extinction ratio PER	dB	≤ 0.2
Fiber and connector	-	Hi 1060	FC/APC

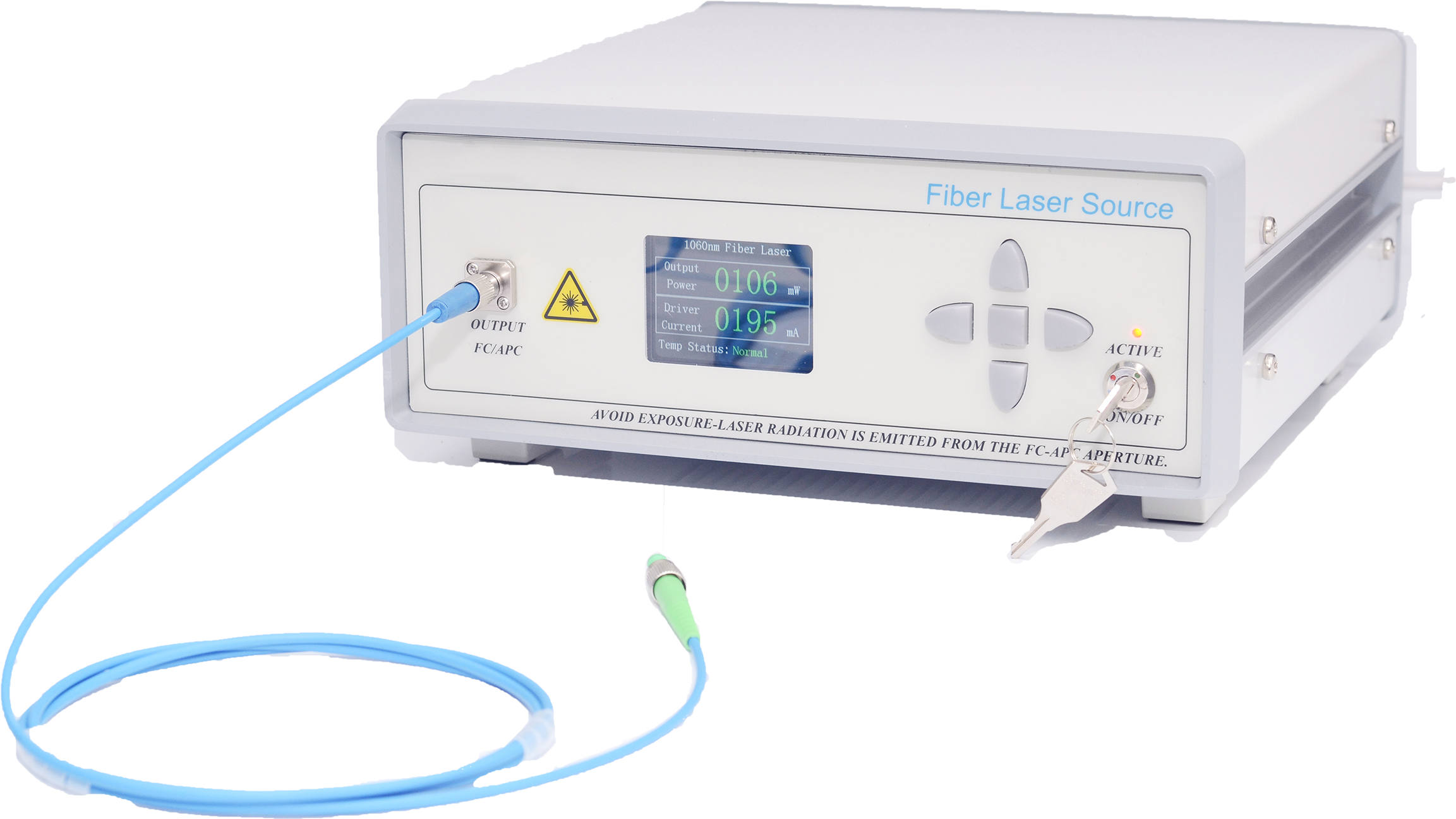

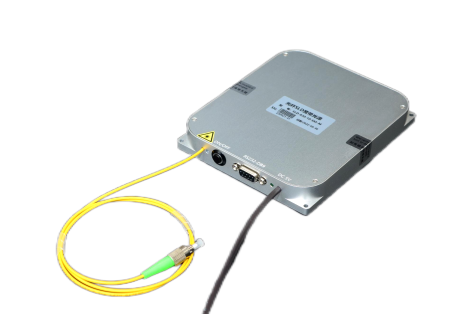

Electrical and environmental parameters	Table type	module
Control mode	Button /RS232 serial communication	RS232 serial communication
communications interface	DB9 Female	DB9 Female
Power	100~240V AC, <30W	5V DC, <15W
Size	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operating temperature range	-5~+35°C
Operating humidity range	0~70%

Ordering information/model:

ASE

wavelength

Output power(mW)

Output pigtail type

package

1010/80

SM= Hi-1060

B=Table type;

M=module
