HDSLM D series large capacity version
HDSLM D series DMD spatial light modulators are developed based on DLPC900, DLPC910 and DLPC410 chips. They have a variety of resolutions and micromirror sizes to choose from, and their working bands cover visible light, ultraviolet light and infrared light.
Operating band 400-700nm
|
product model |

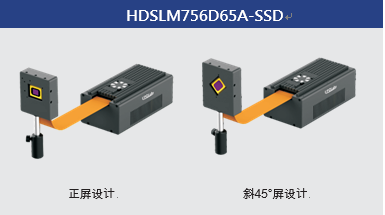

HDSLM756D65A-SSD |
HDSLM756D90-SSD |
HDSLM108D95-SSD |

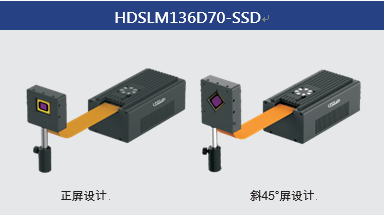

HDSLM136D70-SSD |
|
resolution |
1920*1080 |
2560*1600 |
1920*1080 |
1024*768 |
|
DMD target size |
0.65” |
0.9” |
0.95” |
0.7” |
|
Pixel size |
7.56um |
7.56um |
10.8um |
13.68um |
|
Suitable wavelength |
400-700nm |
400-700nm |
400-700nm |
400-700nm |
|
Filling factor |
92% |
92% |
94% |
92% |
|
reflectivity |
88% |
88% |
89% |
88% |
|
Array optical efficiency |
86% |
86% |
87% |
86% |
|
refresh rate |
10940Hz/508Hz/3Hz |
11764Hz/522Hz/31Hz |
20746Hz/617Hz/3Hz |
27995Hz/657Hz/3Hz |
|
Video interface |
gigabit Ethernet/USB3.0 |
gigabit Ethernet/USB3.0 |
gigabit Ethernet/USB3.0 |
gigabit Ethernet/USB3.0 |
|
Configure interface |
USB2.0 |
USB2.0 |
USB2.0 |
USB2.0 |
|
internal storage capacity |
16GByte |
16GByte |
16GByte |
16GByte |
|
Onboard capacity |
SSD 2T/4T/8T |
SSD 3T/6T/12T |
SSD 3T/6T/12T |
SSD 2T/4T/8T |
|
Installation mode |
Horizontal/oblique 45° |
Horizontal/oblique 45° | Horizontal/oblique 45° |
Horizontal/oblique 45° |
Operating band 363-420nm / 800-2000nm
|
product model |
HDSLM108D95UV-SSD |

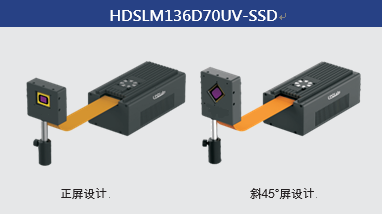

HDSLM136D70UV-SSD |

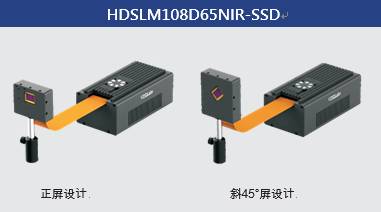

HDSLM108D65NIR-SSD |
|
resolution |
1920*1080 |
1024*768 |
1280*800 |
|
DMD target size |
0.95” |
0.7” |
0.65” |
|
Pixel size |
10.8um |
13.68um |
10.8um |
|
Suitable wavelength |
363-420nm |
363-420nm |
800-2000nm |
|
Filling factor |
92% |
92% |
94% |
|
reflectivity |
88% |
88% |
Depend on |
|
Array optical efficiency |
85% |
85% |
75% |
|
refresh rate |
20746Hz/617Hz/3Hz |
27995Hz/657Hz/3Hz |
11764Hz/522Hz/3Hz |
|
Video interface |
gigabit Ethernet/USB3.0 |
gigabit Ethernet/USB3.0 |
gigabit Ethernet/USB3.0 |
|
Configure interface |
USB2.0 |
USB2.0 |
USB2.0 |
|
internal storage capacity |
16GByte |
16GByte |
16GByte |
|
Onboard capacity |
SSD 3T/6T/12T |
SSD 2T/4T/8T |
SSD 1T/2T/4T |
|
Installation mode |
Horizontal/oblique 45° |
Horizontal/oblique 45° | Horizontal/oblique 45° |
