HDSLM D series cost-efffective version
HDSLM D series DMD spatial light modulators are developed based on DLPC900, DLPC910 and DLPC410 chips. They have a variety of resolutions and micromirror sizes to choose from, and their working bands cover visible light, ultraviolet light and infrared light.
|
product model |

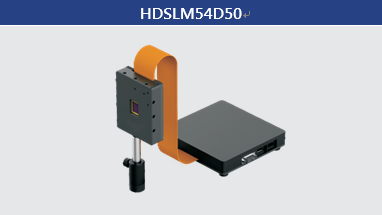

HDSLM54D50 |

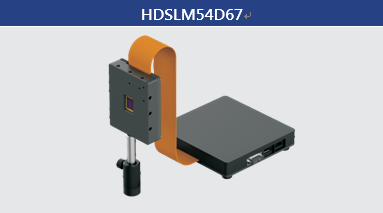

HDSLM54D67 |

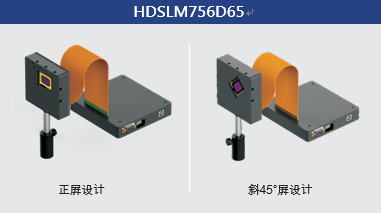

HDSLM756D65 |
|
resolution |
2048*1200 |
2716*1600 |
1920*1080 |
|
DMD target size |
0.5” |
0.67” |
0.65” |
|
Pixel size |
5.4um |
5.4um |
7.56um |
|
Suitable wavelength |
420-700nm |
420-700nm |
400-700nm |
|
Filling factor |
93% |
93% |
92% |
|
Reflectivity |
88% |
88% |
88% |
|
Array optical efficiency |
84% |
84% |
86% |
|
refresh rate |
16100Hz/2016Hz/1008Hz |
9523Hz/1190Hz |
9523Hz/247Hz |
|
Video interface |
HDMI interface /DP interface |
HDMI interface /DP interface |
HDMI interface /DP interface |
|
Configure interface |
USB1.1 |
USB1.1 |
USB1.1 |
|
Internal storage capacity |
512Mbit*2 |
512Mbit*2 |
384Mbit |
|
Onboard capacity |
/ |
/ |
/ |
|
Installation mode |
Horizontal/oblique 45° |
Horizontal/oblique 45° | Horizontal/oblique 45° |
