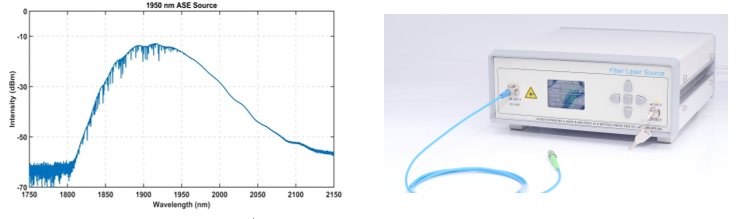

The 2000 nm band ASE broadband light source is based on thulium fiber laser technology, with high output power and spectrum coverage of 1850~2000 nm, which is suitable for laser biological, spectral measurement and other applications. Communication interface and upper computer software can be provided to facilitate the monitoring of light source status.
Features:
Application：
² Flat spectrum
² Optical fiber sensing
² Mid infrared band
² Medical imaging
² High stability output power
² Optical fiber device test
Optical index
Unit
Typical value
Notes
Spectral range
nm
1850~2000
Output optical power
mW
10
Non adjustable
Output isolation
dB
>35
Short term stability
(15 min)
≤±0.02
Long term stability
(8 hours)
≤±0.05
Degree of polarization DOP
≤0.2
Pigtail type
-
SMF-28e or SM1950
Pigtail joint type
FC/APC
Electrical and environmental parameters
table model
module
control mode
Button
communication interface
*Optional
Power supply
100~240V AC, <30W
Dimensions
260(W)×320(D)×120(H)mm
Operating temperature range
-5~+55°C
Operating humidity range
0~70%
Order information/Model
ASE
output power (mW)
* Adjustable power (optional)
Package Type
2000
SM
B=table model
